Vipol d.o.o. – Automatic booth for powder coating
Novi Sad, Republic of Serbia

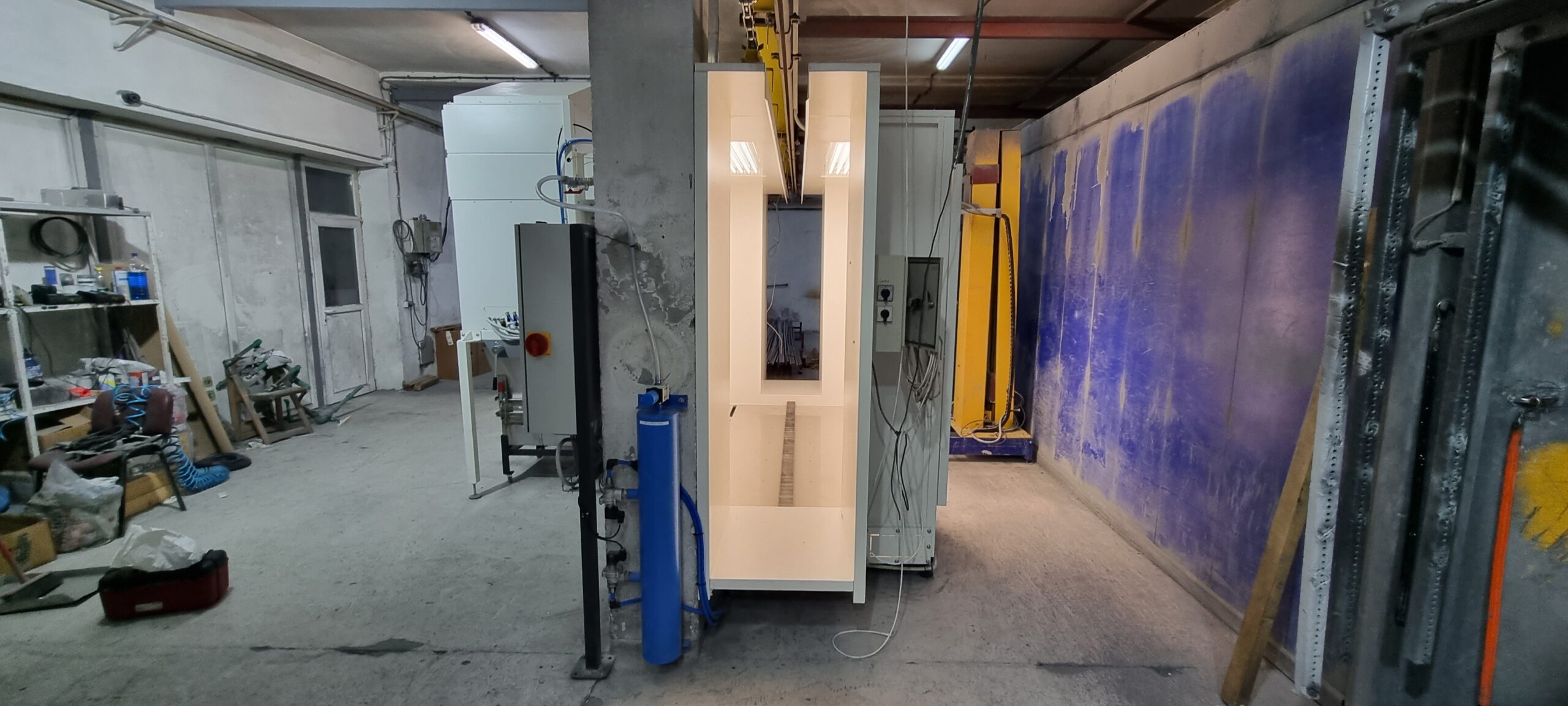

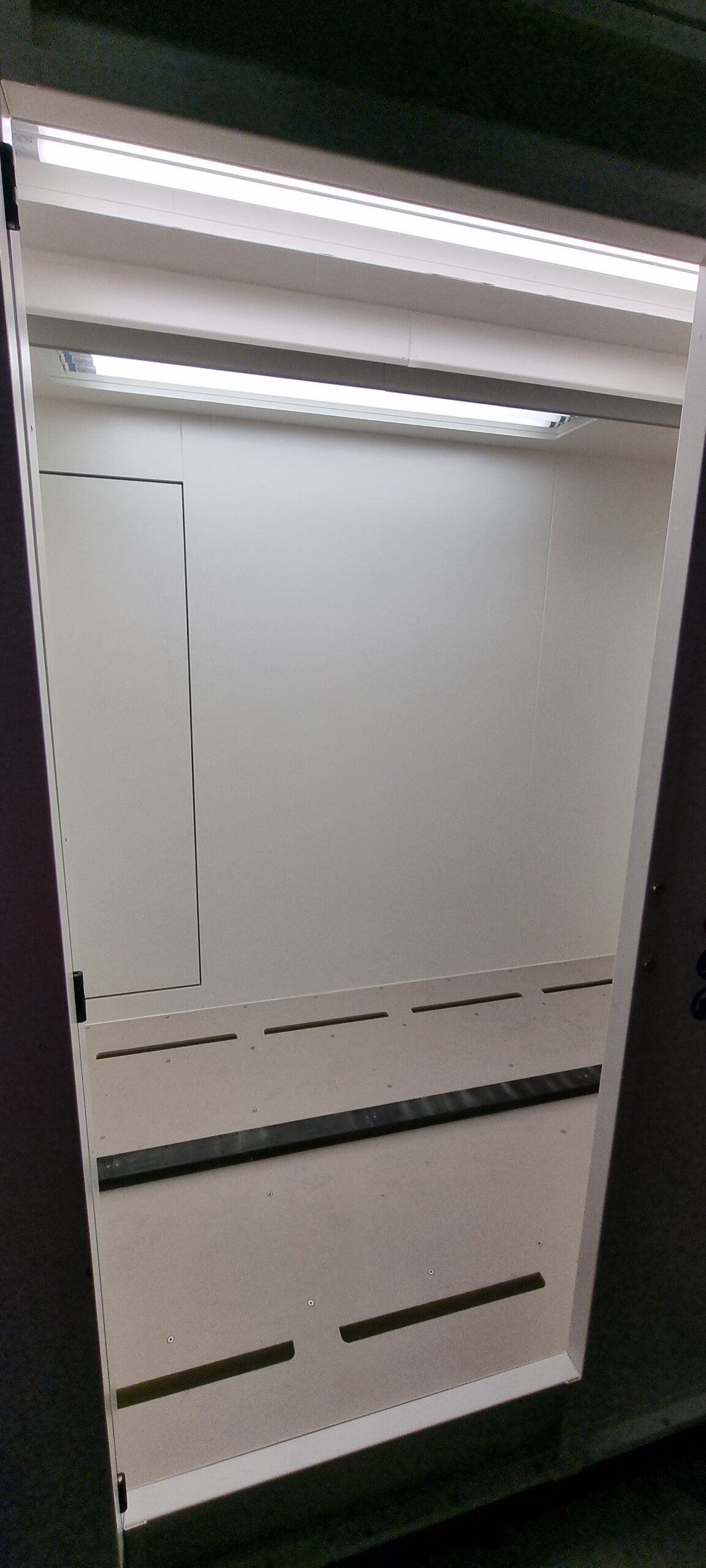

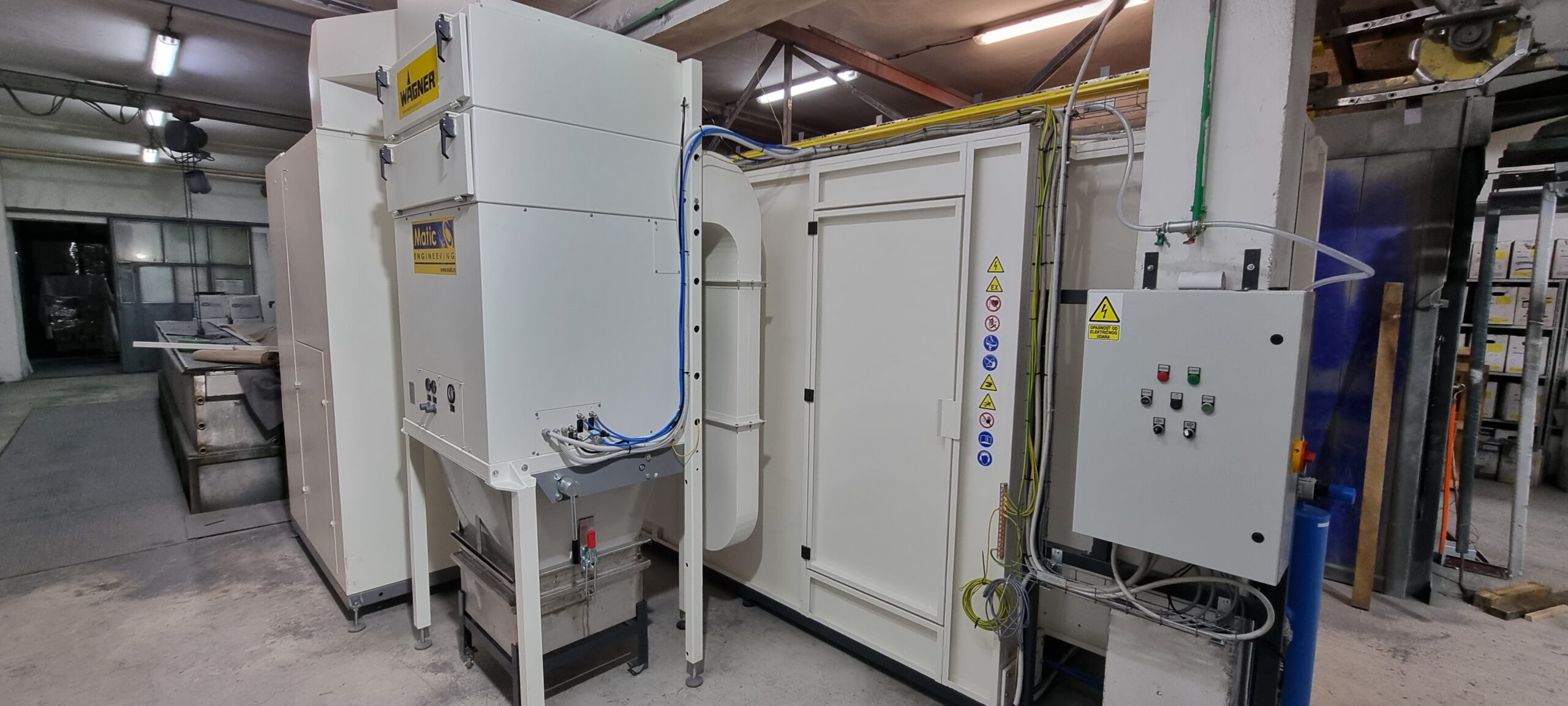

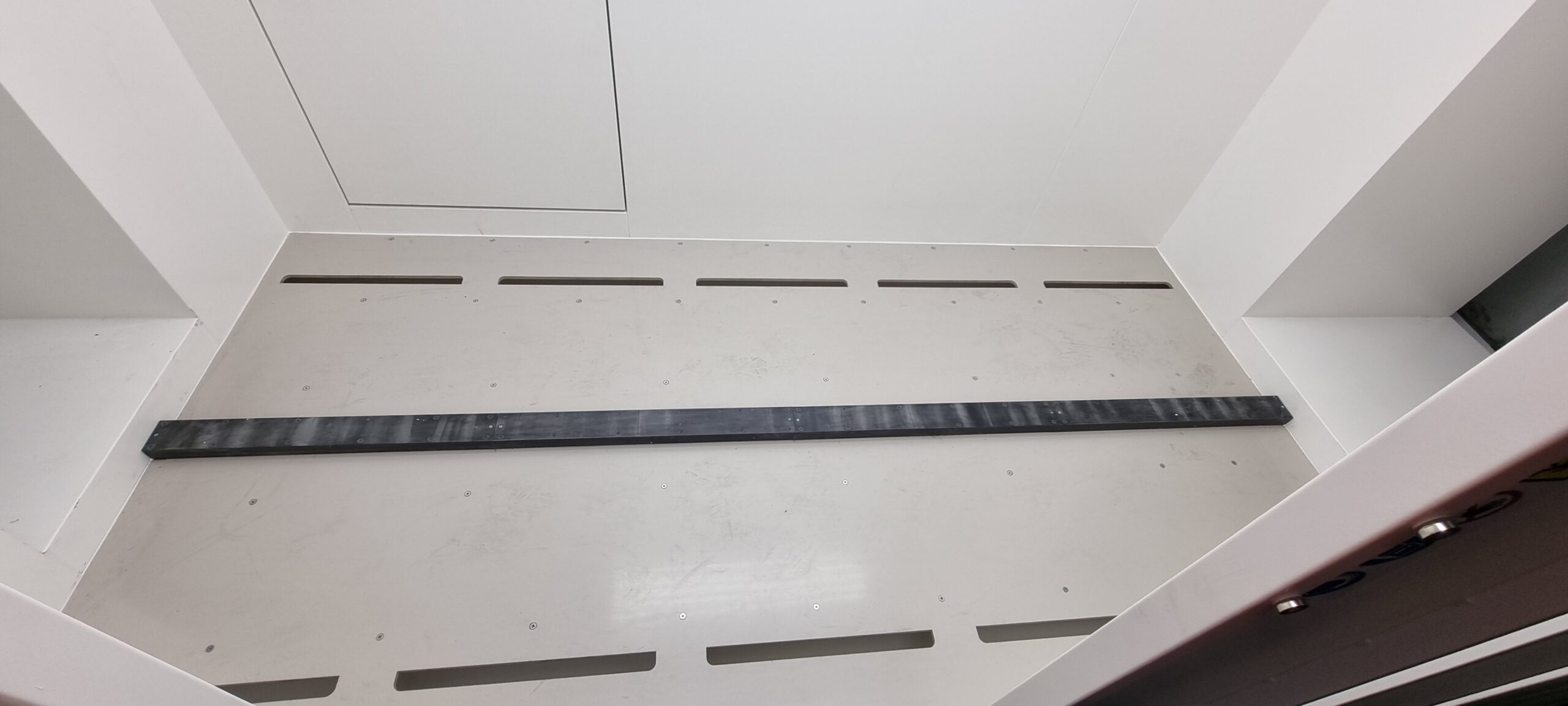

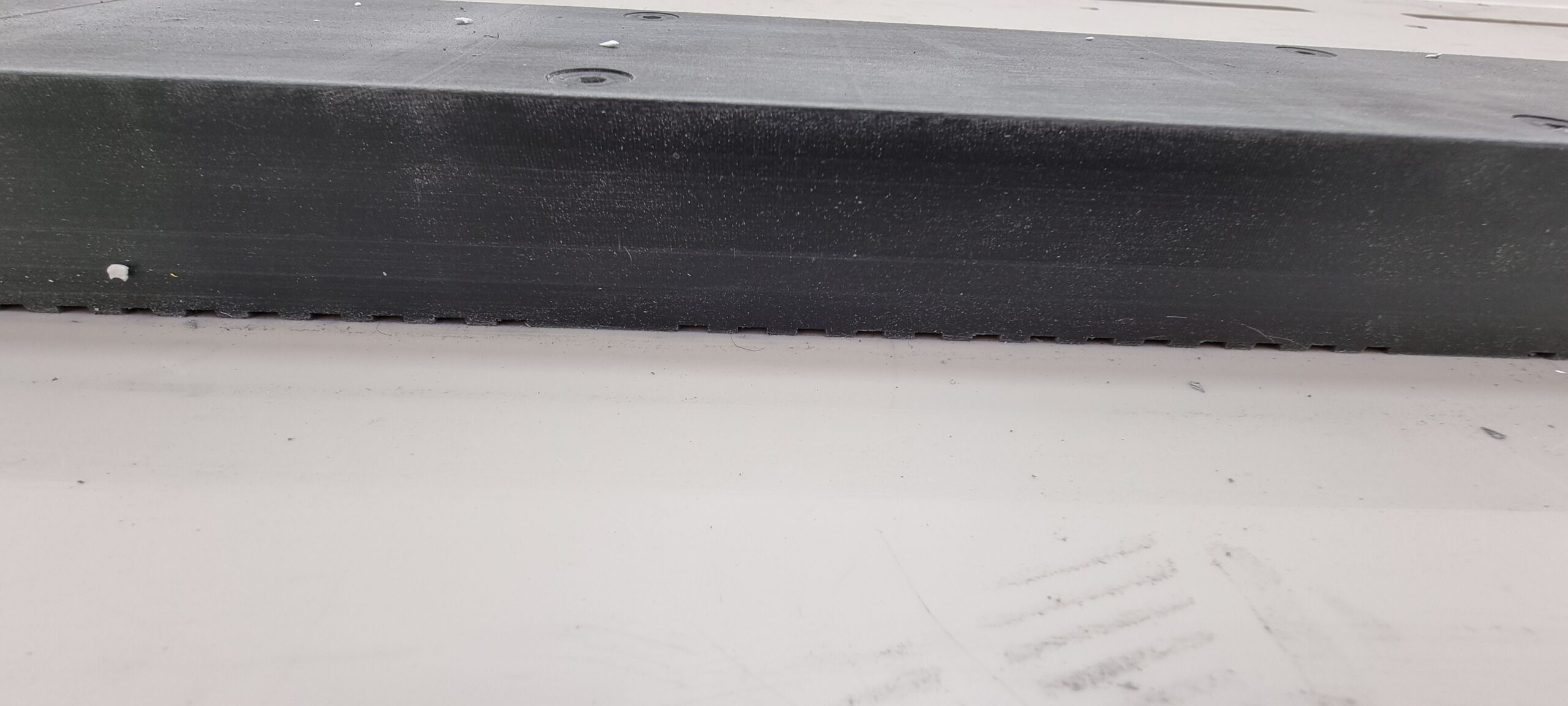

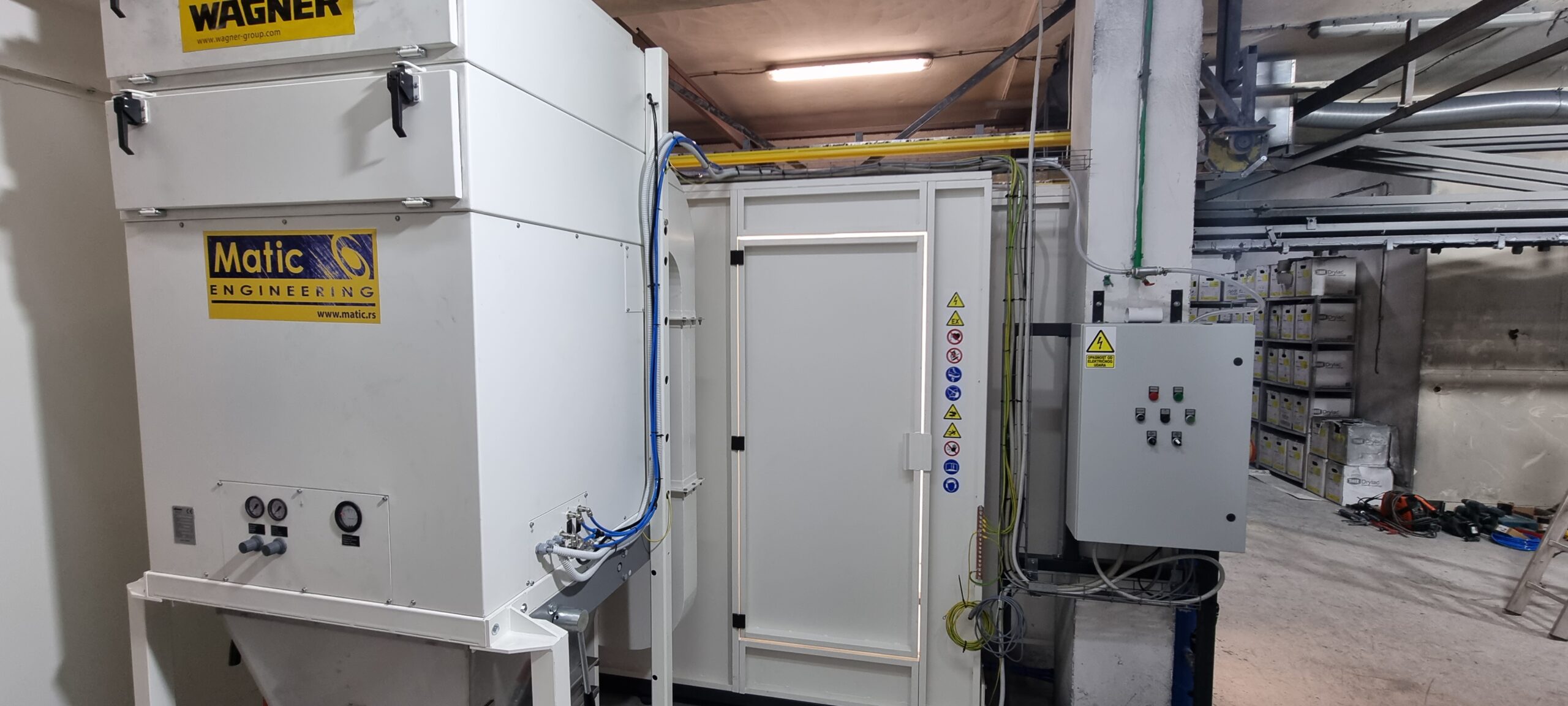

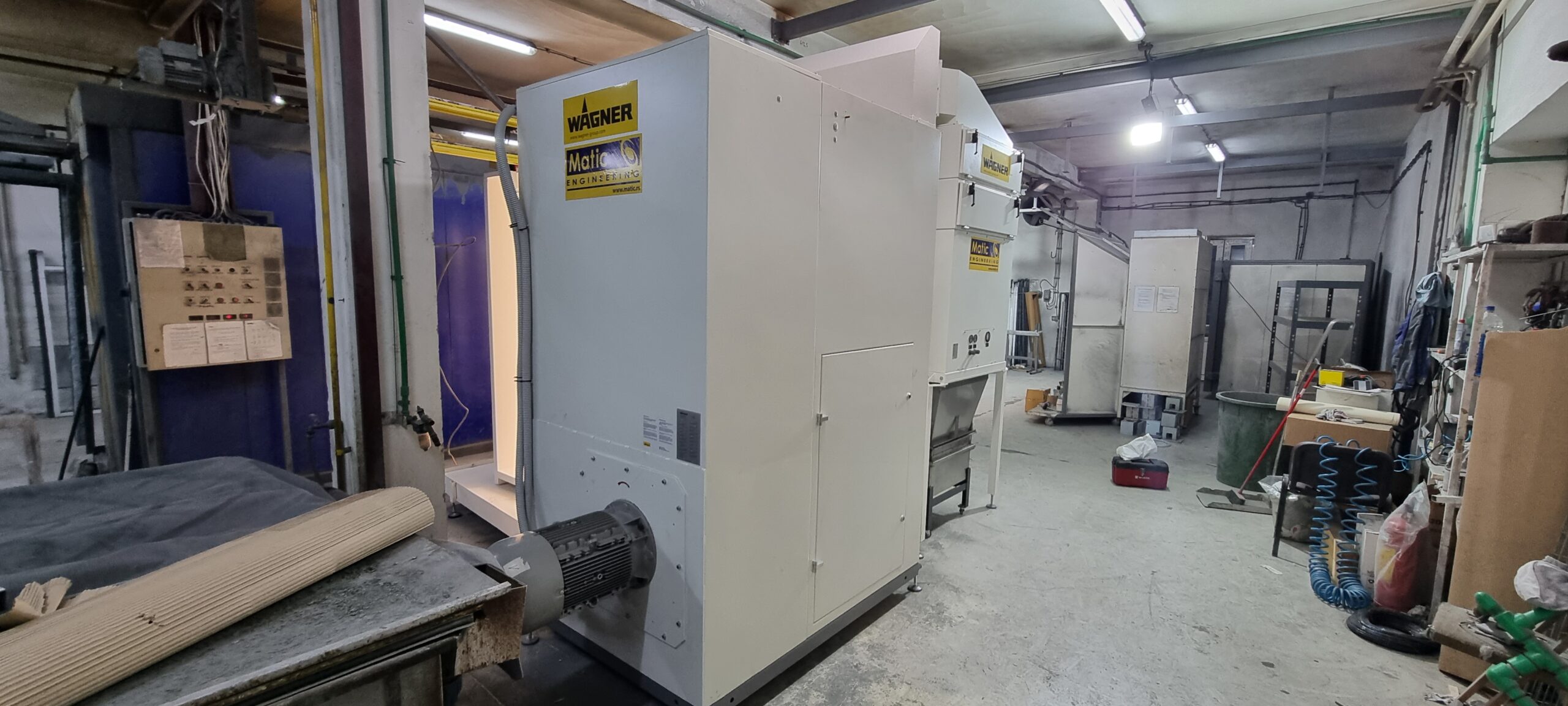

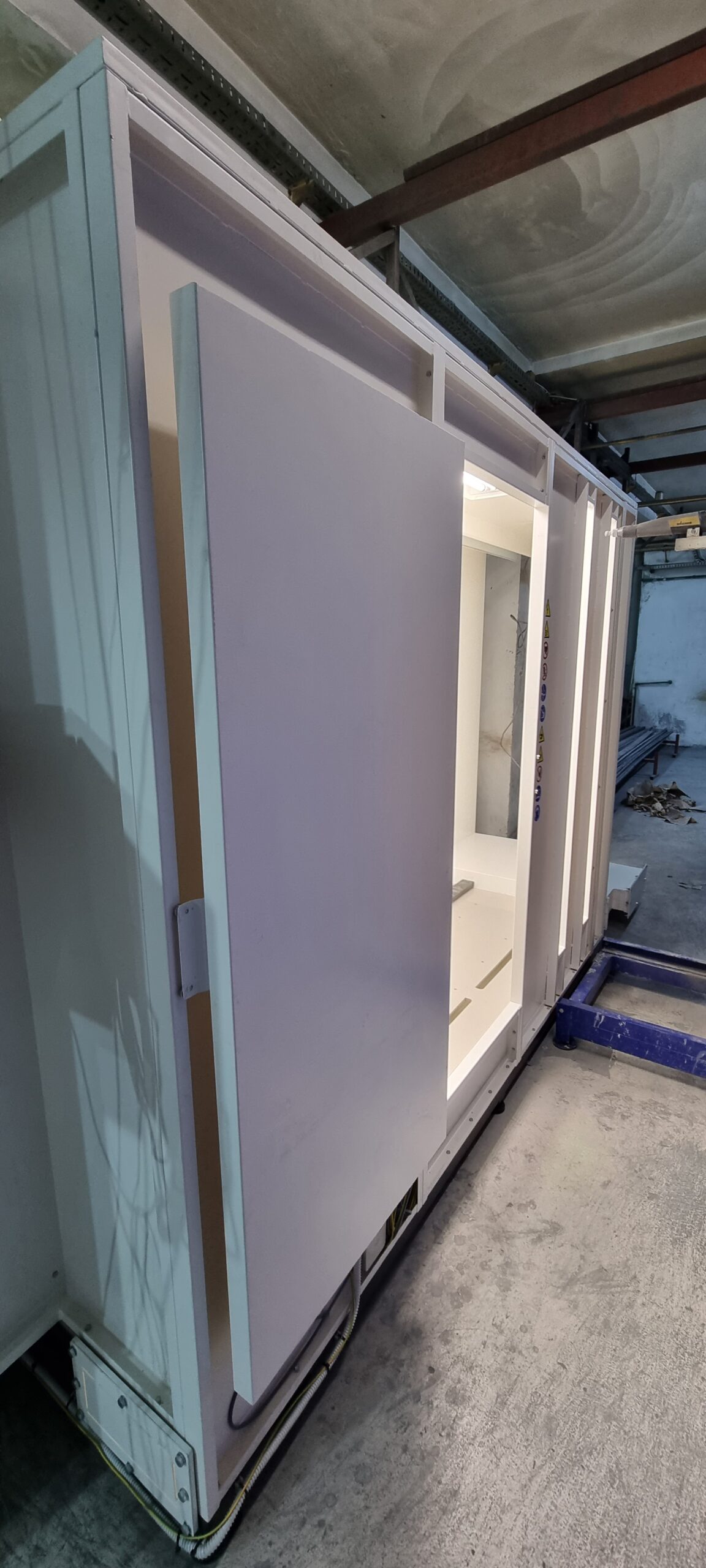

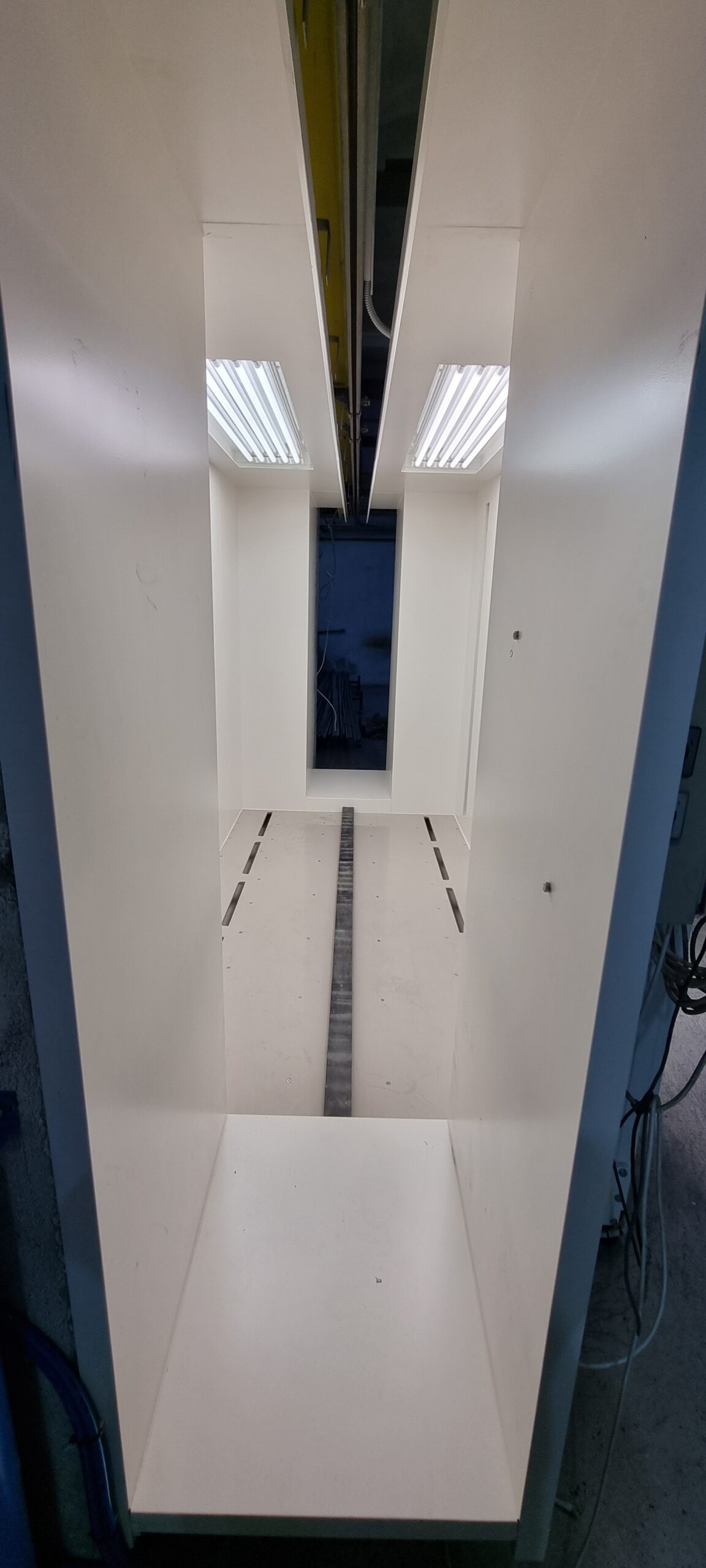

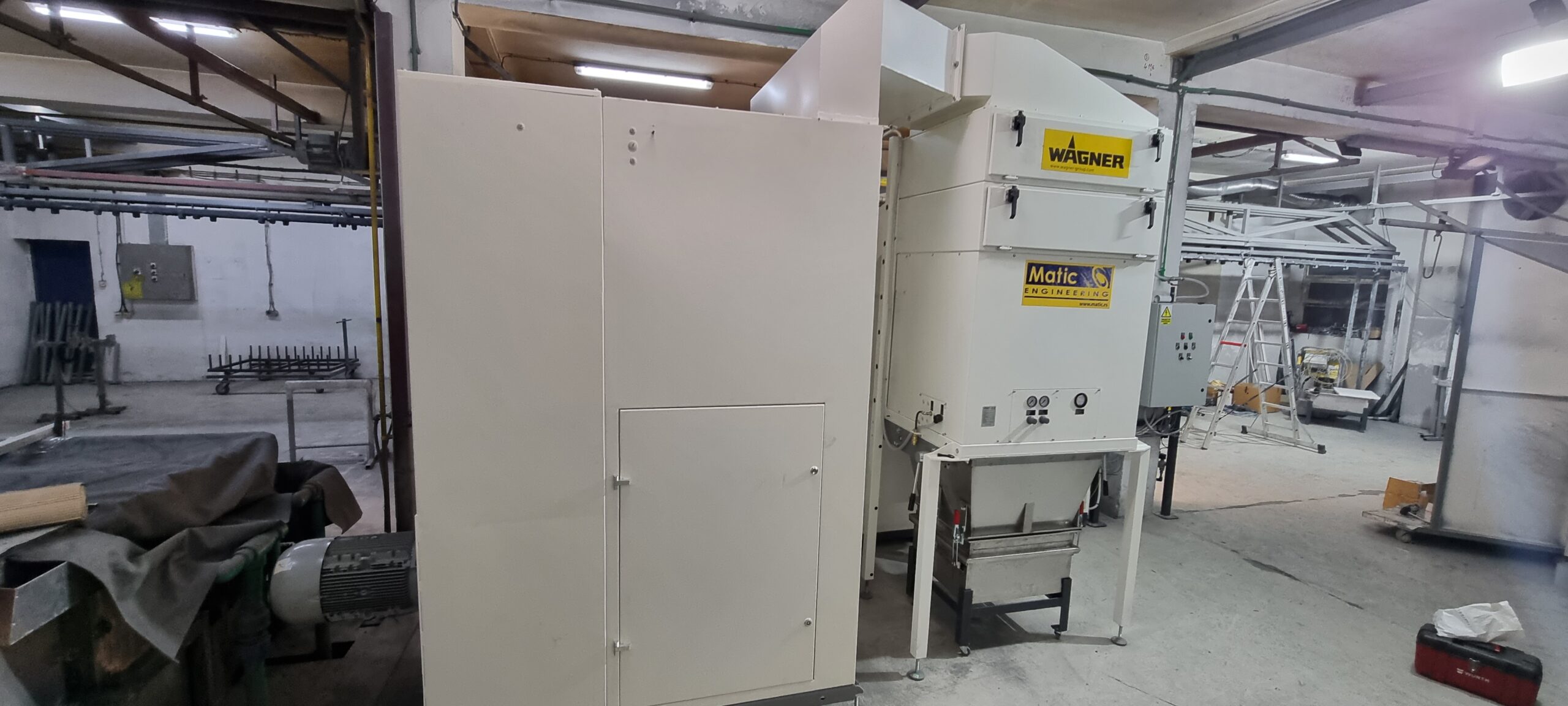

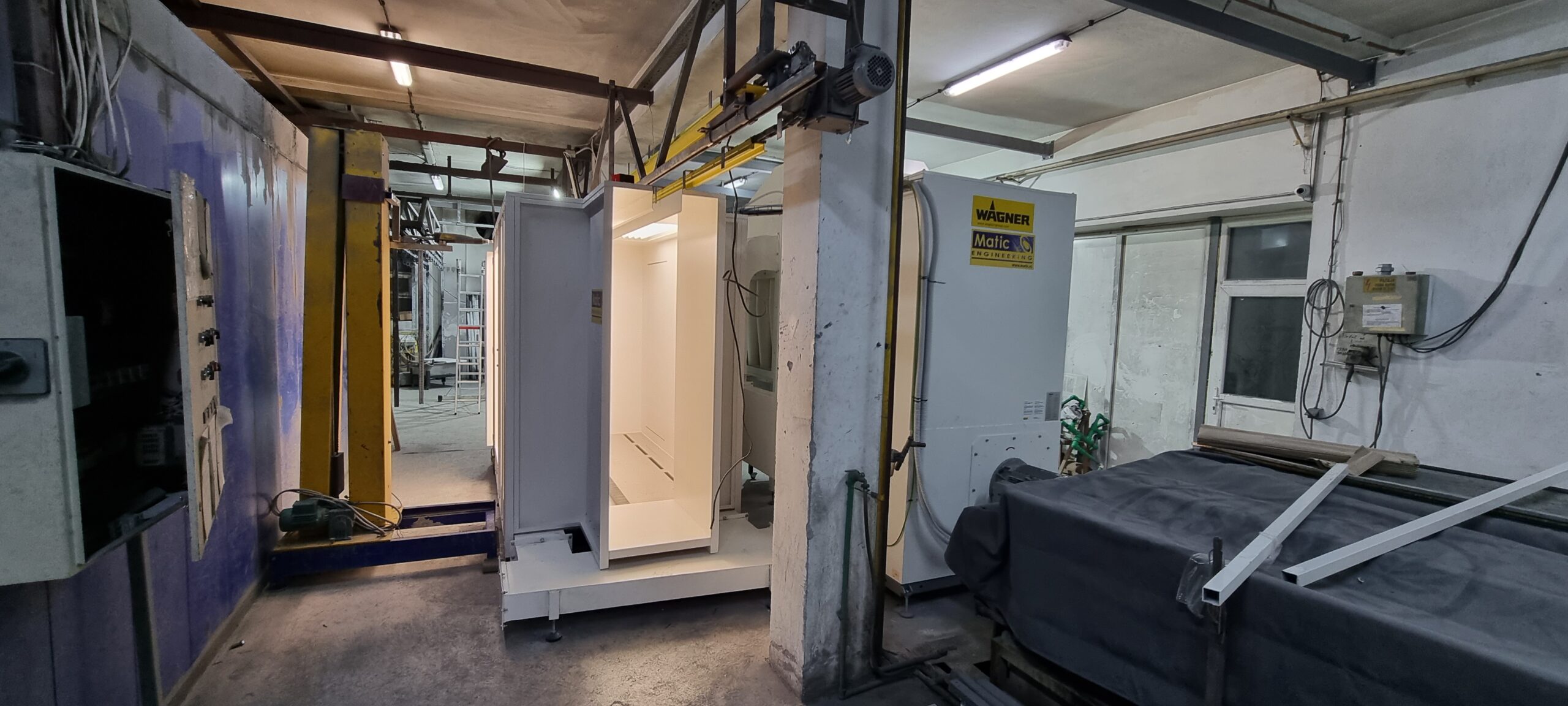

Automatic plant for powder coating aluminum profiles. The booth is designed with a ventilation system in the cabin floor, which is made from plastic for easy cleaning and maintenance of the cabin. On the cabin floor itself, there is a central bar for blowing the floor towards the intake openings. The entire cabin is connected to a WAGNER ICM Multi cyclone of 12,000 m3/h, the system is designed to work with a container with recovery and without recovery of powder paints. The frame of the cabin is made of profiled metal panels (optionally PVC panels), with LED EX II lighting with a maximum power of 240 W. The maximum dimensions of the piece are 6.5 x 0.6 x 2.0 m, and the maximum load per hanger is 250 kg.
